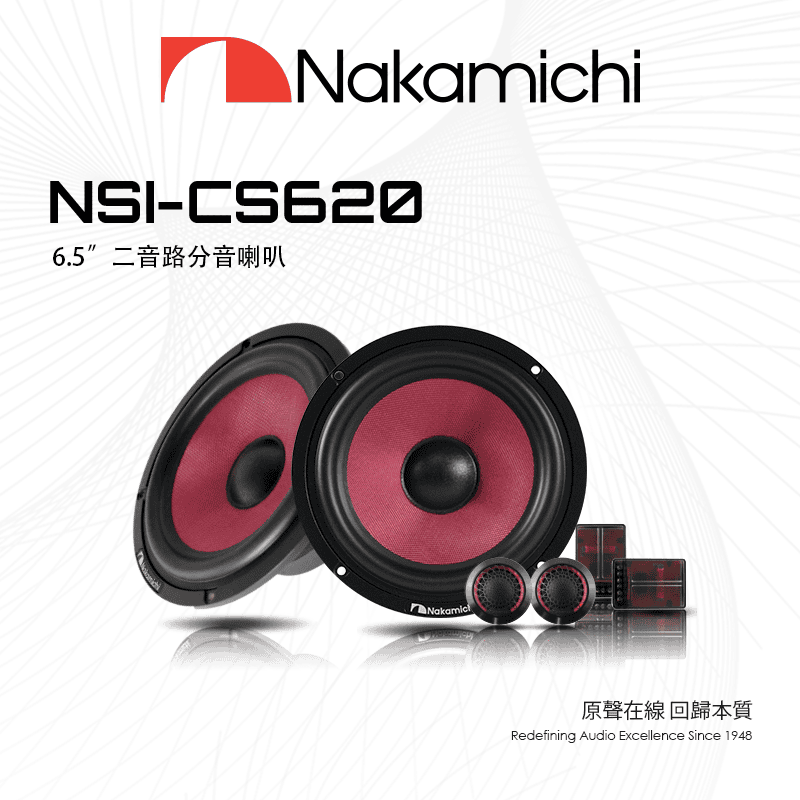

NSI-CS620 二音路分離式喇叭

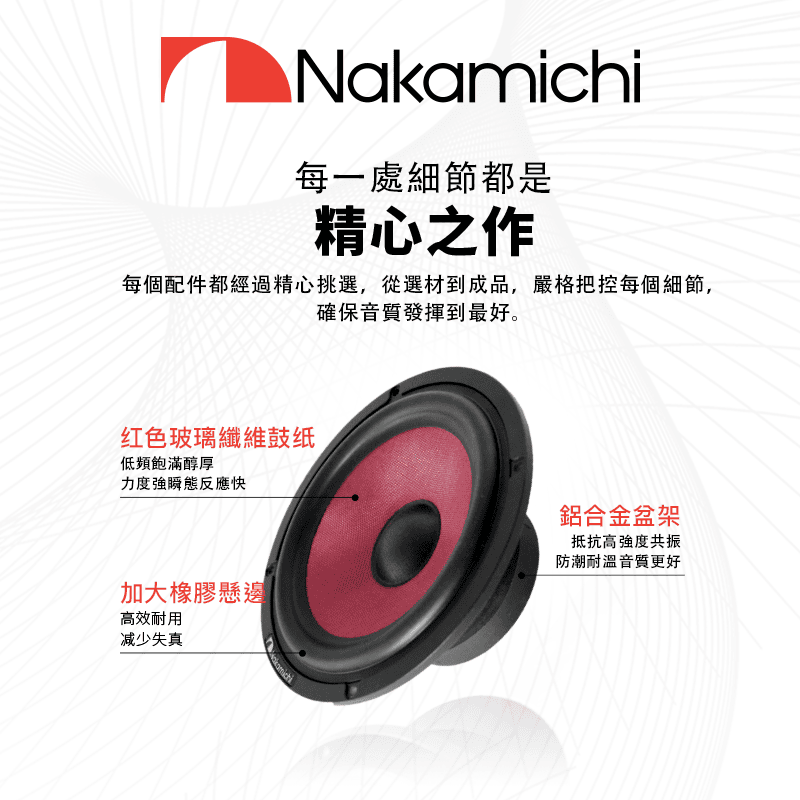

  • Speaker Type: 6.5” Woofer
  • Mounting Depth: >2.64” (67mm)
  • N-Power: 75W
  • Peak Power: 500W
  • Sensitivity (dB/W/m): 88±3dB
  • Frequency Response: 50-3.5kHz
  • Impedance: 4Ω
  • Voice Coil: ASV φ75mm
  • Magnet type:Ferrit
  • Magnet Mass: 9.8+6.5Oz (278+184g)
  • Net Weight: Approx. 1.1kg
  • Speaker Type: 3” Mid-Range
  • Mounting Depth: >1.73” (44mm)
  • N-Power: 25W
  • Peak Power: 150W
  • Sensitivity (dB/W/m): 86±3dB
  • Frequency Response: 200-8kHz
  • Impedance: 4Ω
  • Voice Coil: TIL φ35mm
  • Magnet type:Neodymium
  • Magnet Mass: 0.9Oz (25.5g)
  • Net Weight: Approx. 0.31kg

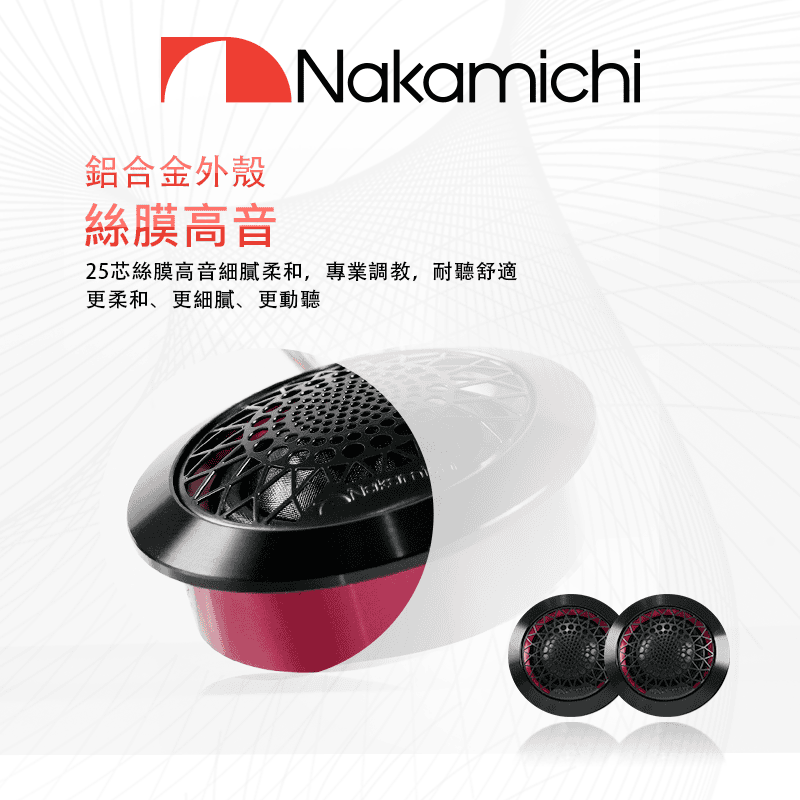

  • Speaker Type: 28mm Tweeter
  • Mounting Depth: >1.06” (27mm)
  • N-Power: 15W
  • Peak Power: 100W
  • Sensitivity (dB/W/m): 89±3dB
  • Frequency Response: 2kHz-20kHz
  • Impedance: 4Ω
  • Voice Coil: ASV φ28mm
  • Magnet type:Neodymium
  • Magnet Mass: 0.4Oz (11.3g)
  • Net Weight: Approx. 0.13kg
